AquaConnect

Name:	AquaConnect
Type:	Plug-In
Provider:	King Graphic Design, Inc.
Cost:	$50
Support Information:	HomeSeer Message Board

Description:

A plugin designed for HomeSeer users who have a Goldline Controls (by Hayward) swimming pool controller and the Aqua Connect Serial Home Automation Interface Module (AQ-CO-SERIAL).

Basic Features:

Creates Devices for all controller buttons
Creates additional virtual devices not found on the pool controller (useful for Events):

Pool temp
Spa temp
Chlorinator Setting
Spa Heater Setpoint
Pool Heater Setpoint
Salt Level
Heater Status
Filter Pump Status (displays speed and RPM for multispeed pump configurations)
Solar Temperature (if have Solar Heater installed)
Salt Cell Temperature
pH and ORP (if have Sense and Dispense unit installed)

Has macros for single button adjustments to Spa/Pool heater set point (amazing this feature is not built in to controller)
Mobile device friendly control screen accessible through HomeSeer or HSTouch with real-time device status.
User can configure control screen to display Spa Heater Controls and individual Auxiliary Devices
User selectable option to log AquaConnect device changes

Requirements:

HomeSeer Version 3.0.0.0 or higher must be installed.
Hayward Aqua Logic or Pro Logic models PS-4, PS-8, PS-8V, and PS-16 pool controllers (with compatible firware) ***MUST BE 'PS' Series Model***
AquaConnect serial home automation interface module (model AQ-CO-SERIAL). Note: Plugin is NOT compatible with AquaConnect Home Network (AQ-CO-HOMENET)

ScreenShots:

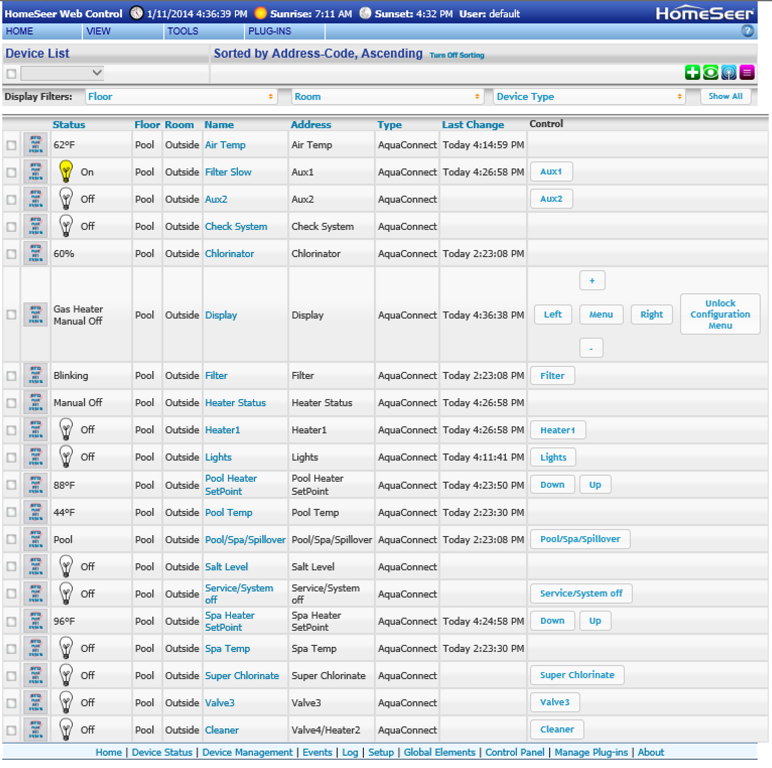

Device Status:

devices

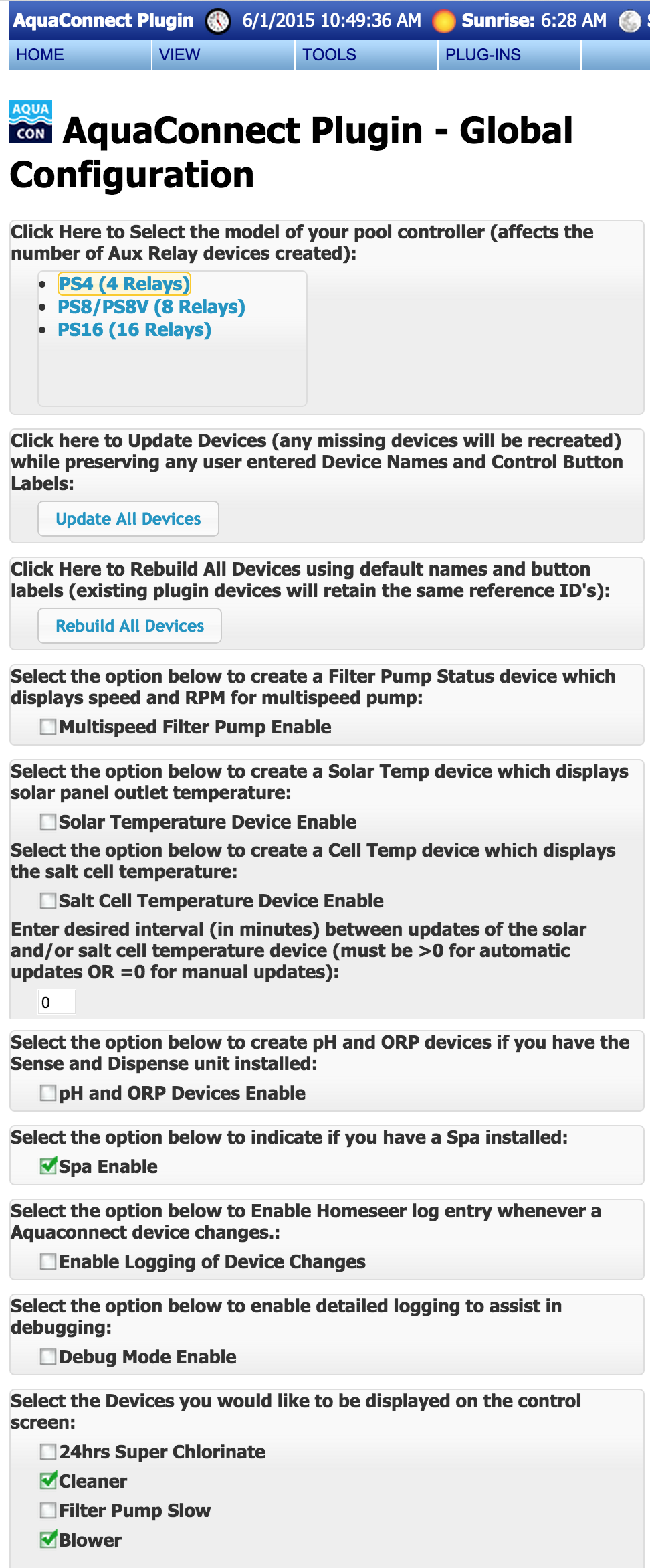

Global Plugin Configuation:

global

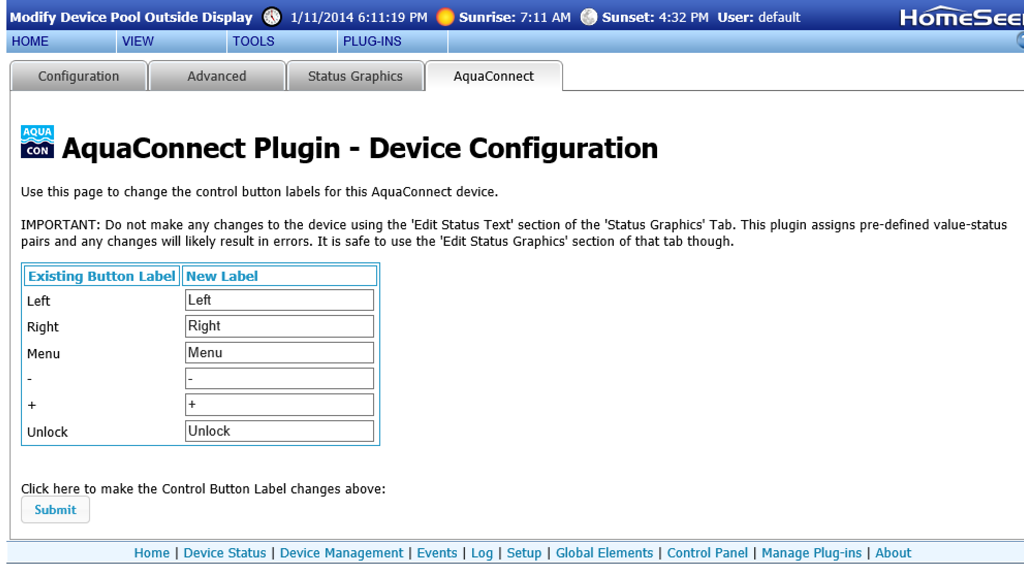

Device Customization:

device

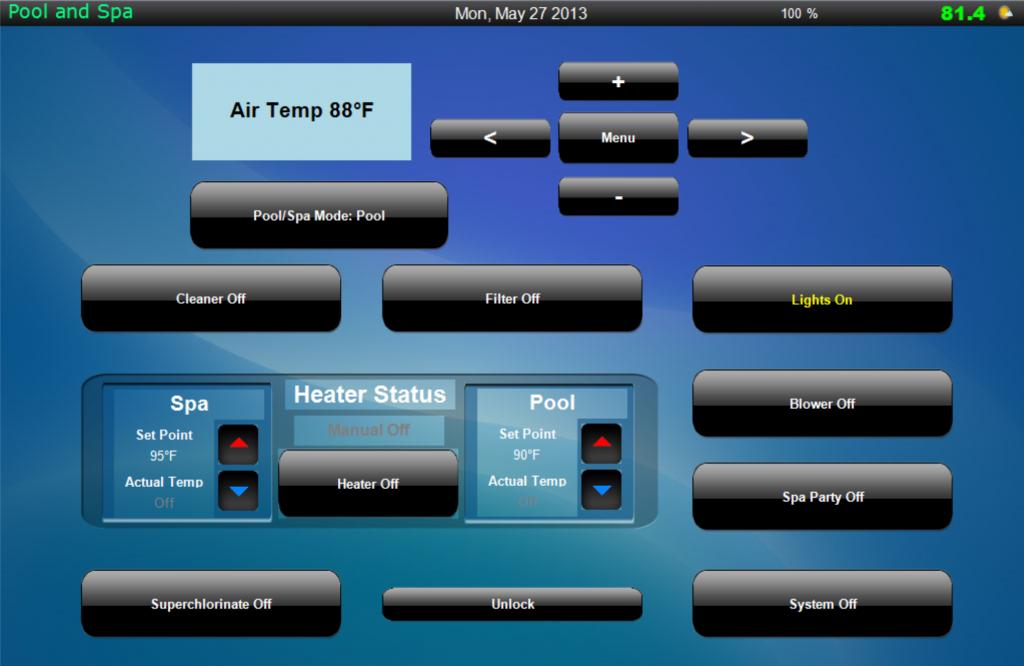

Example HSTouch Screen Created with Plugin Devices:

aquahstouch
